Protection and Control for Submersible Pumps

Output Connections Single Phase

 Connect the power wiring to the pump.  Output connections follow the same order as the input.

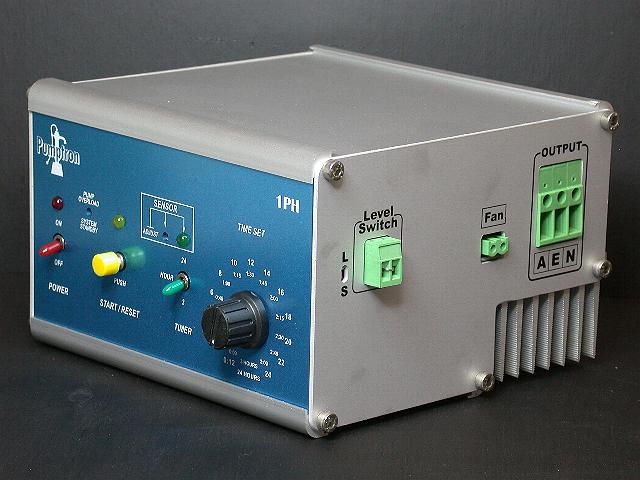

You can see other plugs on this side of Pumptron, they are:

Fan: Pumps that take between 16 and 30 Amps of current may have the cooling fan (supplied on request) installed.

Level Switch: If the pump is used to fill up a tank or dam, a level detecting switch or pressure switch can be connected to this plug to stop the pump when the tank is full.

L S: This is a little switch reachable by a small screwdriver to set the sensor range. L position selects large pumps and S position is for small pumps.

(click on the picture above)
